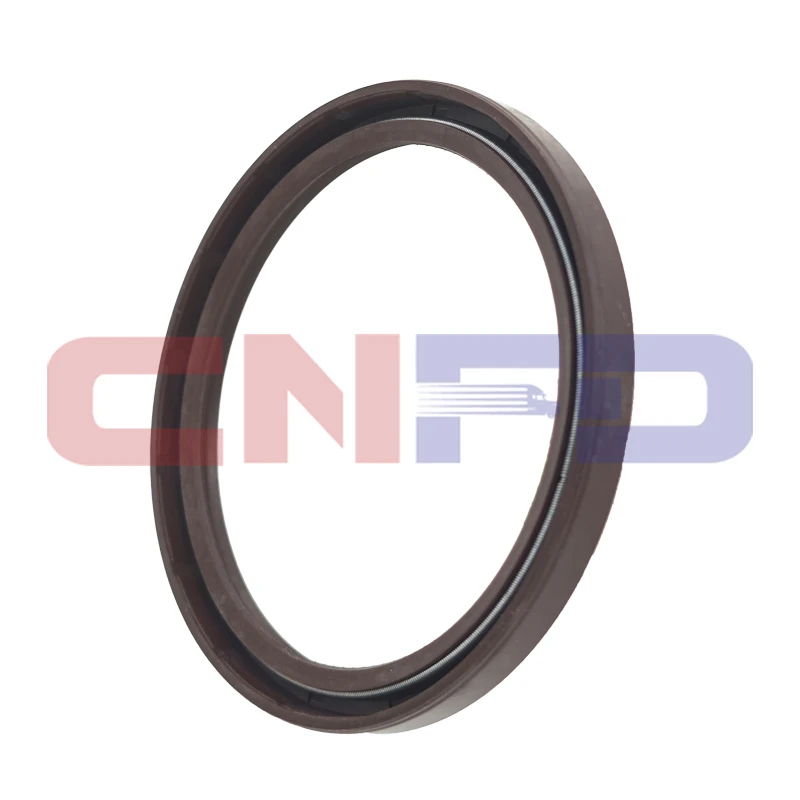

MD050604 Automotive Oil Seal AH3724-F0 HTC 80*96*9 Car Tuck Crankshaft Rear Oil Seal for MITSUBISHI
|
Item
|
Oil seal
|
|
OEM No.
|
AH3724-F0
|
|
Size
|
80*96*9mm
|
|
Brand Name
|
CNFD
|
|
Color
|
Brown
|
|
Customization
|
Avilable , according your drawing or sample
|
|
Application
|
Heavy duty truck
|
|
MOQ
|
100 Pcs
|
THE MAIN TYPE OF OIL SEAL
See: Common oil seal sture types;
Common NOK standard oil seal types.
Drawings: Various design types of oil seal outer edge.
THE ROLE OF EACH PART OF THE OIL SEAL
The oil seal is mainly composed of a sealing body, a reinforced skeleton and a self-tightening coil spring.
The sealing body is divided into the bottom, waist, cutting edge and sealing lip according to different parts.
The following picture shows the:Main names and terms for each part of the internal skeleton oil seal with spring and dustproof lip.
The following picture is:
